MLPE 3DPRINTER ®

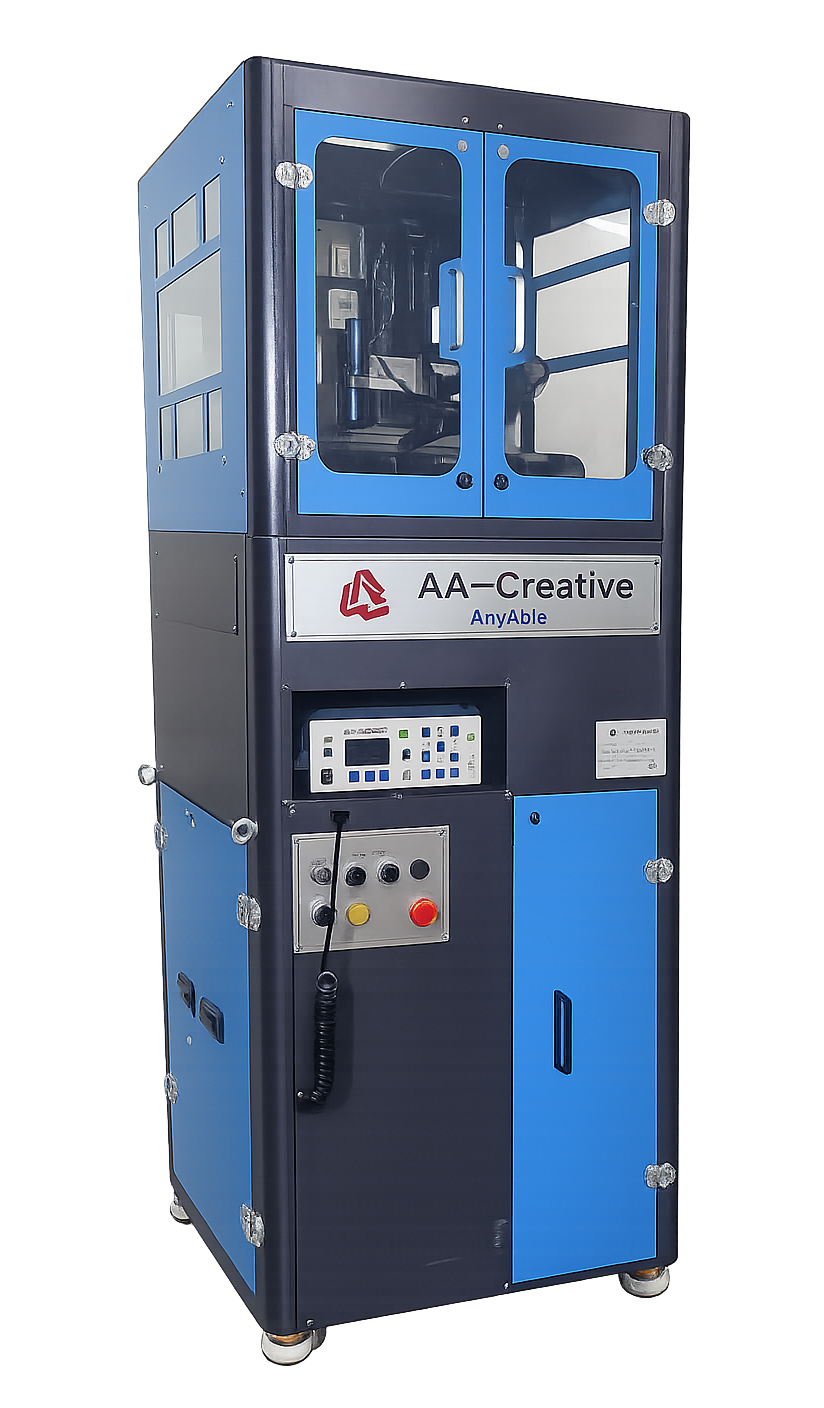

AA-Creative-PM001
3-axis, 50㎛ resolution
- Dispenser pressurization range : 0~100psi
(~700psi with High Pressure Fluid Dispensing Tools) - Changeable working Speed : 0~300mm/sec
- Nozzles of various diameters available : >50㎛
- Real-time monitoring of discharge status
- Various high and low viscosity inks available

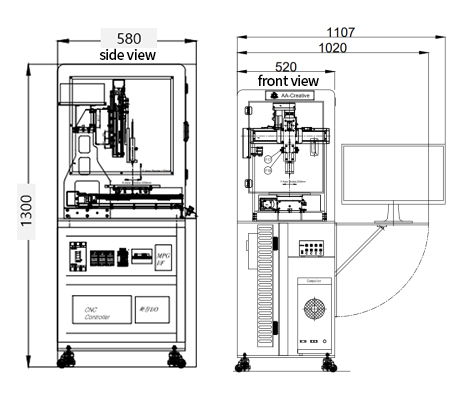

* Actual appearance may differ slightly from the drawing.
Specifications
- Machine volume: 520mm×580mm×1300mm(H)
- Stroke: X-Axis: 150mm, Y-Axis: 100mm, Z-Axis: 100mm
- Max speed of Axis
X-Axis:300mm/sec, Y-Axis:300mm/sec, Z-Axis:250mm/sec - Repeatability: ±0.005mm
- Size of Working Table: 200mm×170mm
- Print area: 120 X 80 mm - Available Substrate Material: FR4, PET, PC, Glass
- ※ The stroke of each axis and the size of the Working Table can be changed according to the customer's request.
- ※ High-pressure dispensing tools, Camera & lens, Computer & monitor, etc. can be upgraded to high-end specifications upon customer request.
