3DPE professional printing technology
Our Excellence
-
printer operation video
-
3D multi-layered printing video
-
1. High resolution printing technology
- High-precision 3DPE printing technology
- Printing resolution: 100m (technically ~1km is possible)
- Conductor resistivity: 100m
- Dual printer head
- Excellent completion (precision, stability) of printed structures
- High-precision 3DPE printing technology
-

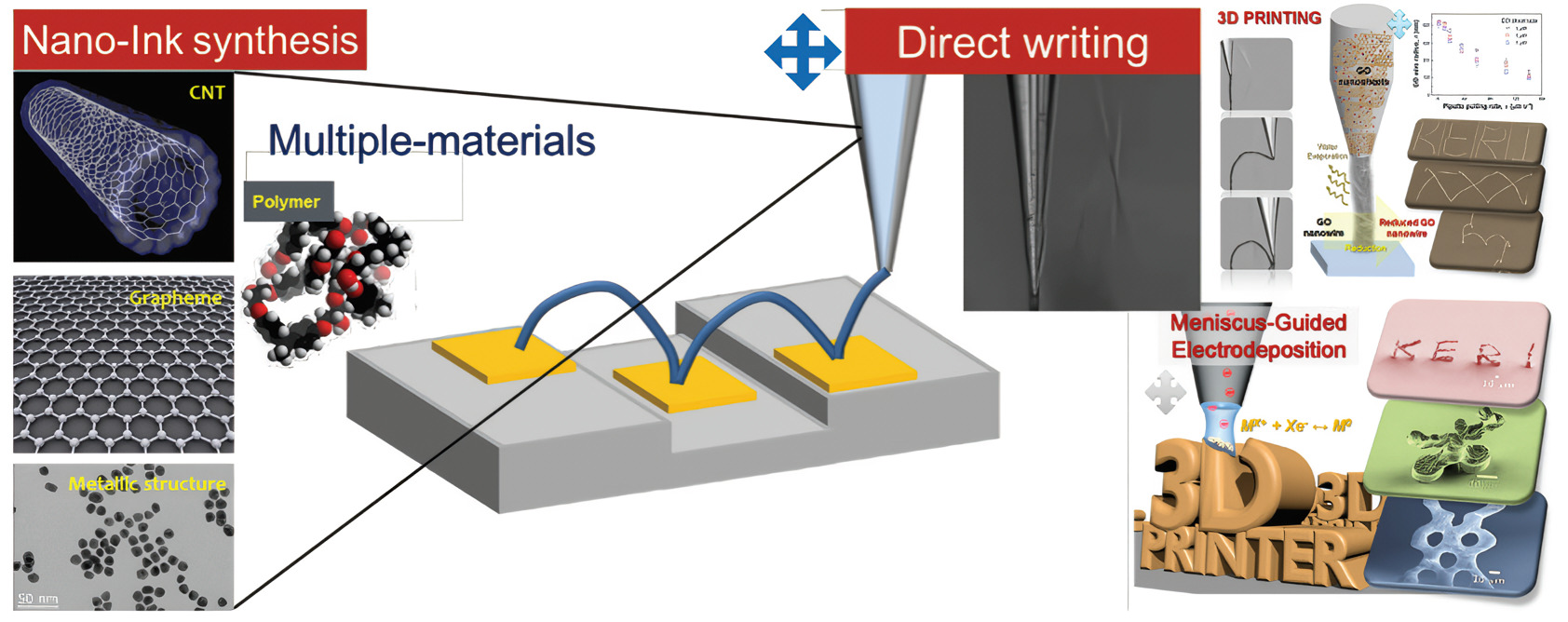

2. Various multi-nano materials available
- Use both high and low viscosity inks

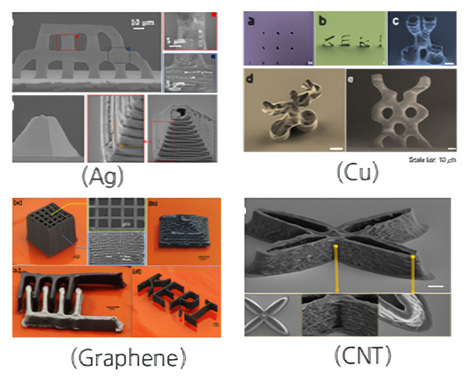

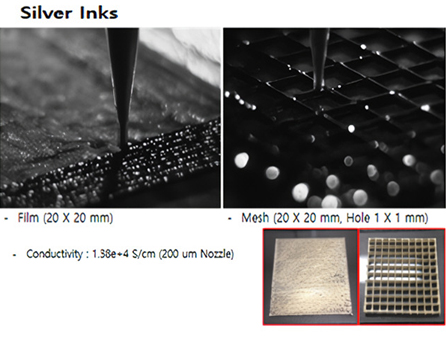

- Ag, Graphene, Flexible Polymer, Magnet, Ag catalyst (for Cu electroless plating)
- No pressure required
- Use both high and low viscosity inks
-
3. Improved experimental convenience under various conditions
- Excellent equipment usability
- Easy to change experimental and production conditions
- Machine vision utilization, monitoring system
- Excellent equipment usability
-
4. Possible to manufacture PCB circuits and various structures
-
5. Excellent cost-effectiveness
- Equipment: $35,000
-

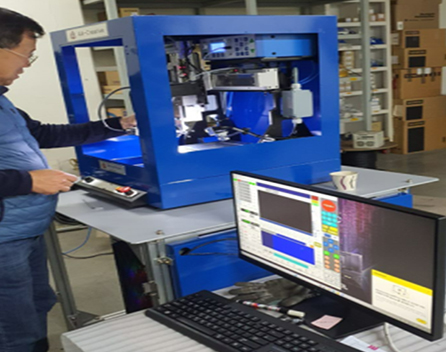

3DPE printer
-
3DPE Dedicated Nozzle
-
3DPE exclusive ink
-
-
- Equipment: 3D printer products for 3DPE (resolution 100㎛ or less)
- Ink: Acquisition of functional ink technology (5 types) (Futher Plan Additional technology transfer from Korea Electrotechnogy Research Institute)

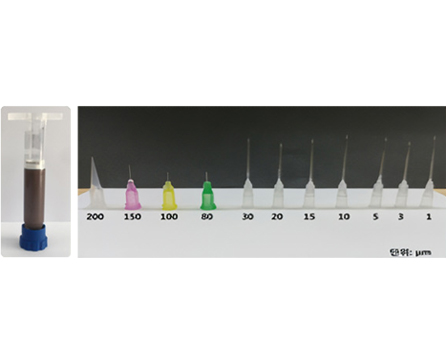

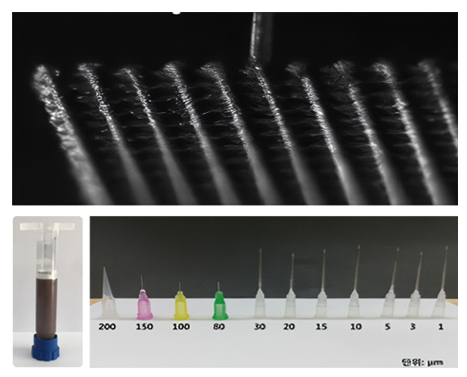

- Parts: 0.1㎛~10㎛ nozzle
3D Printer for 3DPE and Biomaterial Printing
AnyAble's 「MLPE 3DPRINTER® Creative Series」 will solve your concerns!
- We make research and experiments convenient.
- Ink (material) discharge pressure controllable
- Ability to change working speed during operation
- Real-time monitoring of nozzle discharge status
- Integrated control functions by computer
- JOG mode MPG for precise manual control
- Nozzles of various thicknesses available
- High and low viscosity inks (materials) available
- You can save money by configuring your equipment selectively.
- Provides high resolution to enhance the performance of research and experiments.
- It can be used to manufacture various free-form factor devices.
- Bioinks can be used to print bio/medical structures.
- Dispenser pressurization range : 0~100psi
(~700psi with High Pressure Fluid Dispensing Tools) - Changeable working Speed : 0~300mm/sec
- Nozzles of various diameters available : >100㎛
- Real-time monitoring of discharge status
- Various high and low viscosity inks available
- Specifications
- Machine volume: 520mm×580mm×1500mm(H)
- Stroke: X-Axis: 220mm, Y-Axis: 200mm, Z-Axis: 150mm
- Max speed of Axis
X-Axis:300mm/sec, Y-Axis:300mm/sec, Z-Axis:250mm/sec - Repeatability: ±0.01mm
- Size of Working Table: 250mm×220mm
- Print area: 150 X 150 mm - Available Substrate Material: FR4, PET, PC, Glass
- ※ The stroke of each axis and the size of the Working Table can be changed according to the customer's request.
- ※ High-pressure dispensing tools, Camera & lens, Computer & monitor, etc. can be upgraded to high-end specifications upon customer request.
